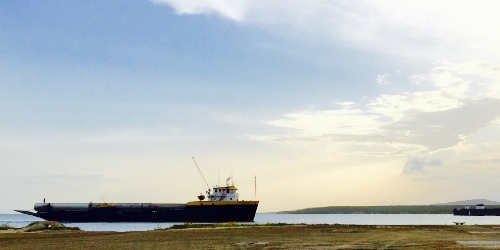

Midnight Dream entering Guayanilla.

Midnight Dream entering Guayanilla.

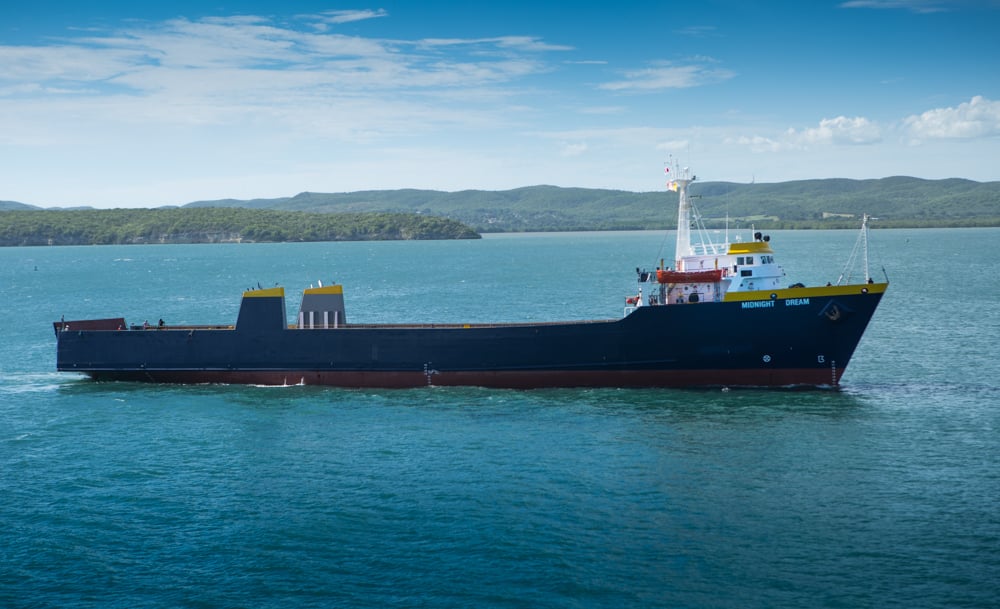

The M/V "Midnight Dream"

Length overall: 90.05 meters (295'05")

Beam: 17.07 meters (56')

Draft: 4.8 to 5.8 meters (can operate in 15' harbors)

Gross tonnage: 1,827 MT

Net tonnage: 548 MT

IMO number: 7913206

cargo capacity

 Midnight Dream's high capacity wide loading ramp for RORO services

Midnight Dream's high capacity wide loading ramp for RORO services

2,500 MT  with a 50 TEUS of RORO capacity ( or 172 in 4 tiers stacked not RORO)

Deck size: 13 meters by 62 meters (42 feet by 203 feet)

speed and consumption

12.5 to 13 MT  burned daily steaming and .8 MT a day in port

14.5 knots cruising speed

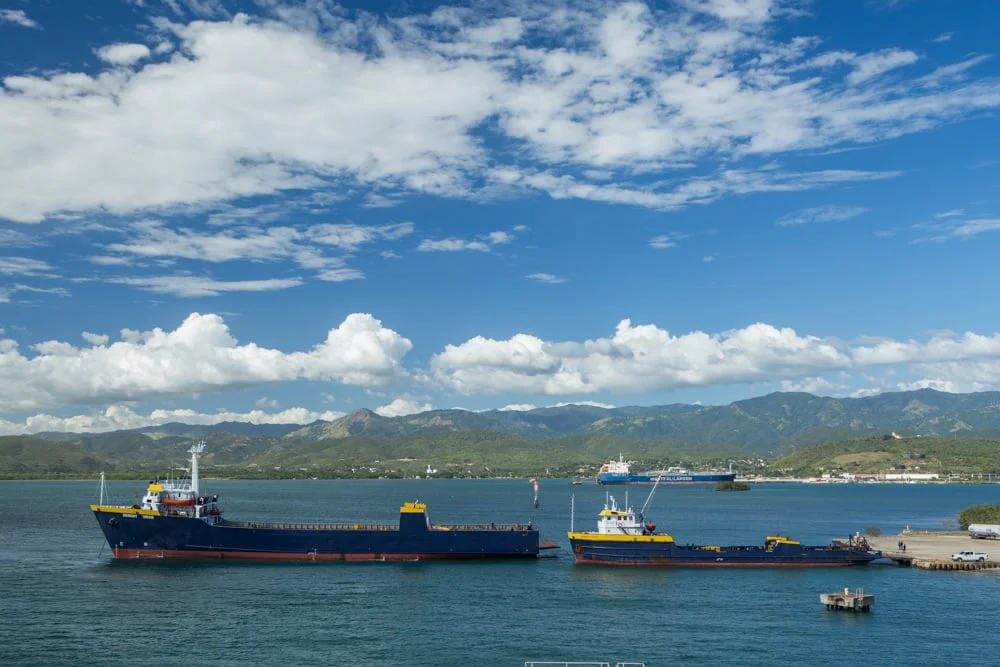

 Midnight Dream backing down beside the Midnight Coast at Peerless Oil Facility

Midnight Dream backing down beside the Midnight Coast at Peerless Oil Facility

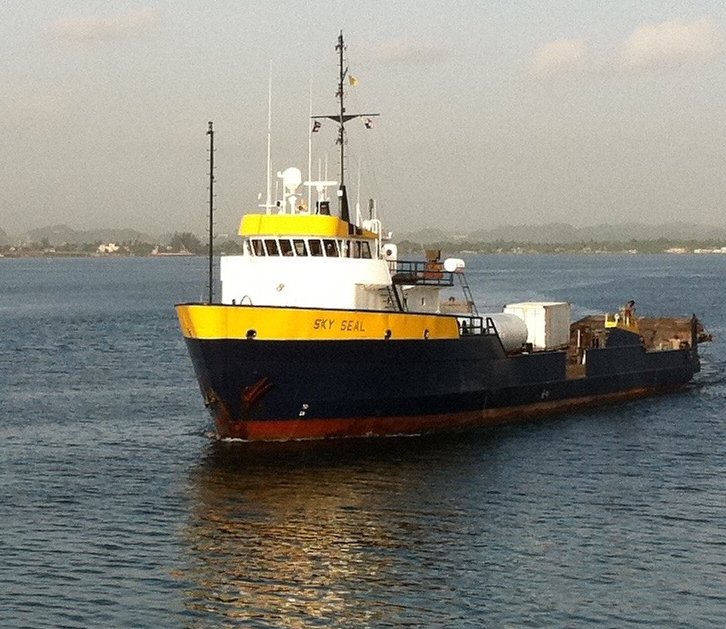

The M/V ''Sky Seal''

L.B.P.  84.00 m

L.O.A.  52.88 m

Breadth moulded:  11.89 m

Breadth extreme:  12.00 m

Draught at summer D.W.A.T.: 3.3 m

GT (I.M.O. '69): 658

NT:  197

IMO number:  7802691

Class: Panama Surveyors, hazardous cargo rating


CARGO CAPACITY:

600 tons


CARGO CARRY DIMENSIONS:

RORO Cargo on deck

Deck space is: 38' by 120'

Heavy steel ramp 400 ton capacity 35' wide


CONTAINERS:

10 40' deck containers


SPEED AND CONSUMPTION:

Fully laden basis clean bottom and wind/sea not exceeding wind force 2 baufort:-

12 knots on 6,50 mt 180 CST + 0.80 mt MGO at sea

180 CST specification:  ISO 8217 RME 25

MGO specification: ISO 8217 DMA

Cruising range approximately 9300 Nautical Miles or 30 days at full speed. Former name: supply vessel M/V "Black Seal" built in Blountstown, Florida - offshore service vessel.







The M/V "Midnight Coast"

L.B.P.  50.70 m.

L.O.A.  53.64 m.

Breadth moulded:  11.20 m.

Breadth extreme:  11.58 m.

Draught at summer D.W.A.T.:   3.36 m.

GT (I.M.O.):  633

NT:  189

IMO number:  7802691

Class: Panama Maritime, hazardous cargo rating


CARGO CAPACITY:

Tons:  575.96  M.T.

Bunkering:  326.42 M.T.


CARGO CARRY DIMENSIONS:

RORO Cargo on deck:  11 X 40' ; 18 X 20' ; 09 X 45'

Deck space is:  420 m2  (37.50 x 11.20m)

Heavy steel ramp:  30T

Width of the ramp:  9.15m


CONTAINERS:

Number of 20' containers with mule:  18

Number of 40' containers with mule: 11


SPEED AND CONSUMPTION:

Max speed:  11.0 knot

Normal speed:  10.5 knot

Fuel efficiency:   At sea:  4.4 MT/day
                           At port: 0.45 MT/day







The M/V "Midnight Chief"

L.B.P.

L.O.A.  52.72 m.

Breadth moulded:  12.19 m.

Breadth extreme:

Draught at summer D.W.A.T.:

GT (I.M.O.):  756

NT:

IMO number:  8115722

Class: Panama, hazardous cargo rating


CARGO CAPACITY:

Tons:  610M.T.

Bunkering:  69986 gal.


CARGO CARRY DIMENSIONS:

RORO Cargo on deck:

Deck space is:

Heavy steel ramp:

Width of the ramp:


CONTAINERS:

Number of 20' containers with mule:  24 containers

Number of 40' containers with mule:  12 containers


SPEED AND CONSUMPTION:

Max speed:  11.0 kts

Normal speed:

Fuel efficiency:

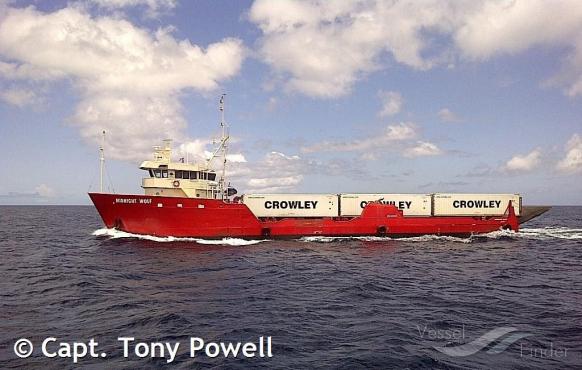

The M/V ‘’Midnight Wolf’’

L.B.P.

L.O.A.

Breadth moulded:

Breadth extreme:

Draught at summer D.W.A.T.:

GT (I.M.O.):  792 t

NT:  203 t

IMO number:  8203036

Class: Panama, hazardous cargo rating


CARGO CAPACITY:

Tons:  650

Bunkering:

CARGO CARRY DIMENSIONS:

RORO Cargo on deck:

Deck space is: 12m

Heavy steel ramp:

Width of the ramp:


CONTAINERS:

Number of 20' containers with mule:

Number of 40' containers with mule:


SPEED AND CONSUMPTION:

Max speed:  11.0 kts

Normal speed:  10.0 kts

Fuel efficiency:
